Interpolation and Regularization Operators with MPI

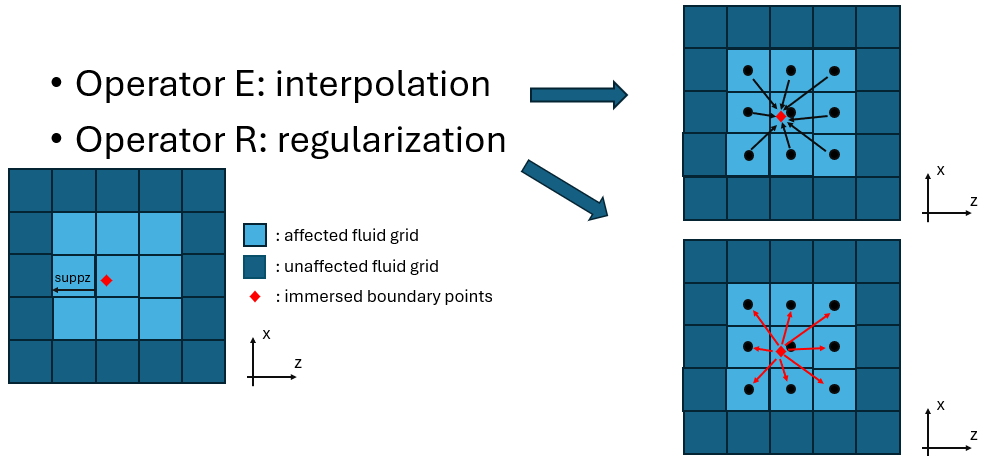

E and R schematic

Figure 1: Schematic of interpolation and regularization operator.

In the Immersed Boundary Projection Method (IBPM), two operators link the fluid grid and the immersed boundary (IB) points:

  • Operator E (interpolation, regT): interpolates fluid velocity from the Eulerian grid onto the Lagrangian IB points
  • Operator R (regularization, regu/regv/regw): spreads the IB force from the Lagrangian IB points back onto the Eulerian grid

Each IB point interacts with a local stencil of fluid grid points within a support radius suppz in the spanwise direction (and equivalently in x and y). The affected fluid cells are illustrated in the schematics above.

The Support Cell Concept

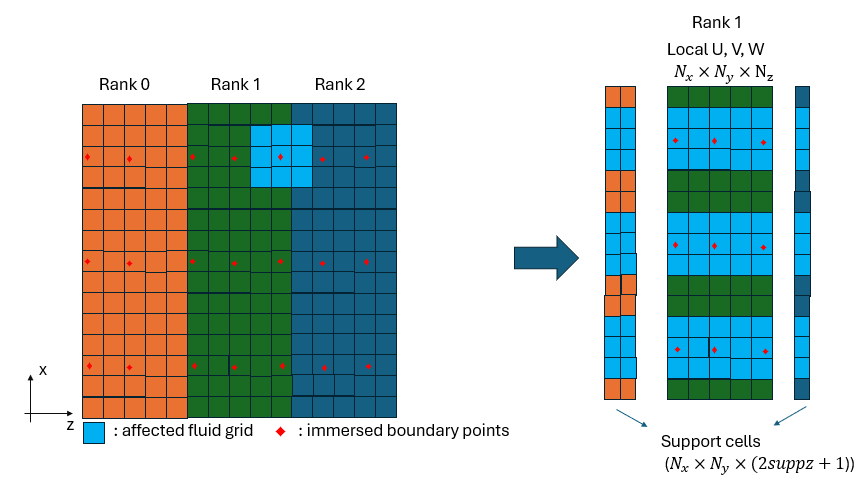

support cell schematic Figure 2: Schematic of support cell.

Because the domain is partitioned along z, an IB point near a rank boundary may require fluid data that lives on a neighboring rank. To handle this without repeated point-to-point communication during the operator evaluation, each rank maintains a support cell buffer, called support cell, a local copy of the fluid planes from neighboring ranks that fall within the stencil of its assigned IB points.

The support cell buffer for each variable has size:

N_x × N_y × (2·suppz + 1)

where 2·suppz + 1 is the full stencil width in z. The subroutines interior_planes_update_support and support_update_interior_planes handle the MPI communication to keep these buffers synchronized before and after the operator evaluations.

IB Point Distribution Across Ranks

Each rank is responsible for a contiguous subset of the nb total IB points, defined by the range [nb_start, nb_end]. The local number of IB points is:

local_size_nb = nb_end - nb_start + 1

Operator E — Interpolation (regT)

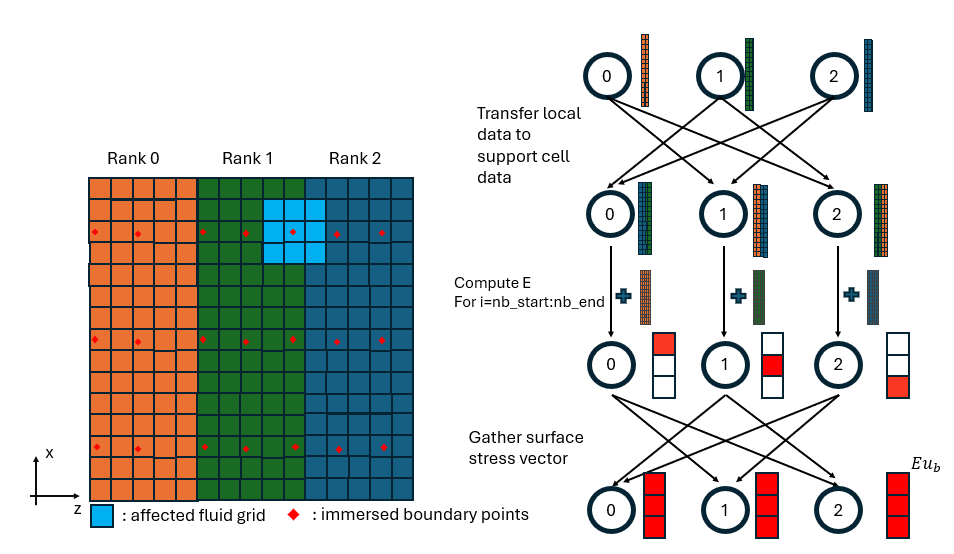

E chart Figure 2: Flow chart of interpolation operator.

The interpolation operator evaluates the fluid velocity at each IB point as a weighted sum over the surrounding stencil points:

\[E\mathbf{u} = \sum_{i=1}^{N_{\text{weights}}} w_i \, \mathbf{u}(\mathbf{x}_i)\]

Execution Steps

Step 1 — Populate support cells:

Call interior_planes_update_support(U_, U_supp, 1)
Call interior_planes_update_support(V_, V_supp, 2)
Call interior_planes_update_support(W_, W_supp, 3)

Fluid planes from neighboring ranks that fall within the stencil are copied into the local support buffers U_supp, V_supp, W_supp.

Step 2 — Local interpolation (local_regT):

For each IB point j in [nb_start, nb_end] and each stencil point i:

! If the stencil point lives on myid → read from local array
Eu_(j) = Eu_(j) + u_weights(i,j) * U_(xi, yi, z_local)

! If the stencil point lives on a neighbor → read from support buffer
Eu_(j) = Eu_(j) + u_weights(i,j) * U_supp_(xi, yi, z_supp)

The rank that owns a given stencil point is stored in u_proc(i,j) (and equivalently v_proc, w_proc).

Step 3 — Global assembly (MPI_Allgatherv):

Each rank has computed the interpolated value only for its assigned IB points. A global gather assembles the full result across all ranks, separately for each velocity component:

! Gather u-component: indices 1      .. nb
Call MPI_Allgatherv(regT_buffer(nb_start     : nb_end),     ...)

! Gather v-component: indices nb+1   .. 2*nb
Call MPI_Allgatherv(regT_buffer(nb+nb_start  : nb+nb_end),  ...)

! Gather w-component: indices 2*nb+1 .. 3*nb
Call MPI_Allgatherv(regT_buffer(2*nb+nb_start: 2*nb+nb_end), ...)

After this step every rank holds the complete interpolated vector Eu_ of length 3·nb.

Operator R — Regularization (regu / regv / regw)

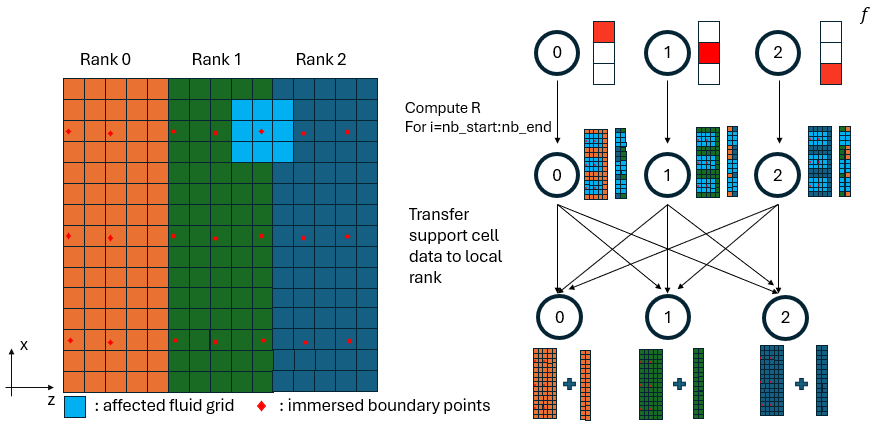

R chart Figure 2: Flow chart of regularization operator.

The regularization operator spreads the IB body force back onto the fluid grid as a weighted sum scaled by the cell volume:

\[R\mathbf{f} = \sum_{j=1}^{N_b} w_j \, \frac{s_j}{\Delta x \, \Delta y_{\min} \, \Delta z} \, f_j \, \delta(\mathbf{x} - \mathbf{x}_j)\]

Execution Steps

Step 1 — Local regularization (local_reg):

For each IB point j in [nb_start, nb_end] and each stencil point i, the body force is accumulated onto the fluid grid:

! If the stencil point lives on myid → write directly into F
F(xi, yi, z_local) = F(xi, yi, z_local) + weight * factor * sb(j) * f_(j)

! If the stencil point lives on a neighbor → write into support buffer
F_supp(xi, yi, z_supp) = F_supp(xi, yi, z_supp) + weight * factor * sb(j) * f_(j)

where factor = 1 / (dx · dy_min · dz) and sb(j) is the arc-length weight of IB point j.

Step 2 — Reduce support buffer back to interior planes:

Call support_update_interior_planes(F, F_supp, id)

Contributions that were accumulated in the support buffer (targeting neighboring ranks) are sent back and added into those ranks' interior arrays, completing the scatter operation.

Summary

Step Operator E (regT) Operator R (regu/regv/regw)
Pre-communication interior_planes_update_support —
Local computation local_regT local_reg
Post-communication MPI_Allgatherv support_update_interior_planes
